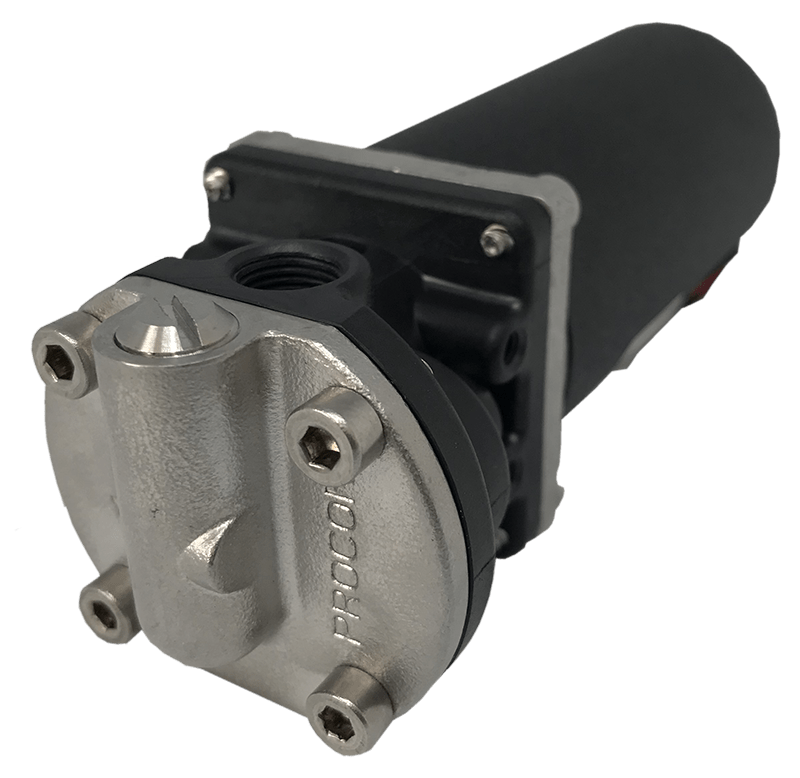

Low pressure Micro Gear Pump/Motor Assembly- 51R1LCT2GXX

Model #: 51R1LCT2GXX
PPS Pump/Motor Assembly, 47GPHEPDM, External adjust Relief Valve- with DC Brushed Motor, 24V
Low pressure Micro Gear Pump/Motor Assembly- 51R1LCT2GXX
Agency logo
Agency logo

Please email [email protected] for price and availability for this item.

Loading..
Typical Lead Time: 60 Days

Delivery and Return Information

Price is not set for this product. Loading..
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Innovative mechanical seal design requires less sanitation
  • Internal Relief Valve External adjust configuration
  • PPS Housing Material
  • G 1/8" Inlet and Outlet Connections
  • Constructed with EPDM Elastomers
  • Flowrate of 47GPH (180LPH)*
  • Maximum (continuous duty) operating pressure 40psi (3BAR)¹
  • Fluid Operating Temperature of between -4°F to 180°F (-20°C to 82°C)
  • Special Non-Standard Counter clockwise rotation
  • 24VDC Brushed Motor, 0.08hp (60W)

    • * Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
    Technical Information
    Flow Rate GPH 47GPH
    Flow Rate LPH 180LPH
    Agency Approvals NSF STD. 169 Listed
    Material PPS
    Port Hole G 1/8"
    Elastomer EPDM
    Seal Type Balances Silicon Carbide/Hard Carbon
    Rotation Counter Clockwise
    Internal Component Material Carbon Fiber PEEK
    Valve Type Solid- Teflon
    ValveConfiguration External adjust
    Product Weight 2.14lb (0.97Kg)
    Operating Range
    Max Operating Pressure 40psi
    Relief Valve Set Pressure Range 30 to 70psi (2 to 5 BAR)
    Max Static Pressure PSI 60psi
    Min Operation Fliud Temperature -4°F
    Max Operation Fluid Temperature 180°F
    Max Fluid Viscocity 20000cP
    Max Sound Level 60dB(a)
    Max Discharge Pressure 90psi
    MinSpeed 500RPM
    Max Speed 4000RPM
    Dry Suction Lift 3.3ft
    Wet Suction Lift 6.6ft
    Motor Performance
    Speed 4000RPM
    Motor Design IMB3
    Power (hp) 0.08
    Voltage 24V
    Voltage 2 0.08
    Power (W) 60W
    Motor Current 4.1A
    Protection IP20
    Motor Insulation F
    Motor Type Brushed
    AC/DC DC
    Cooling Type No Cooling
